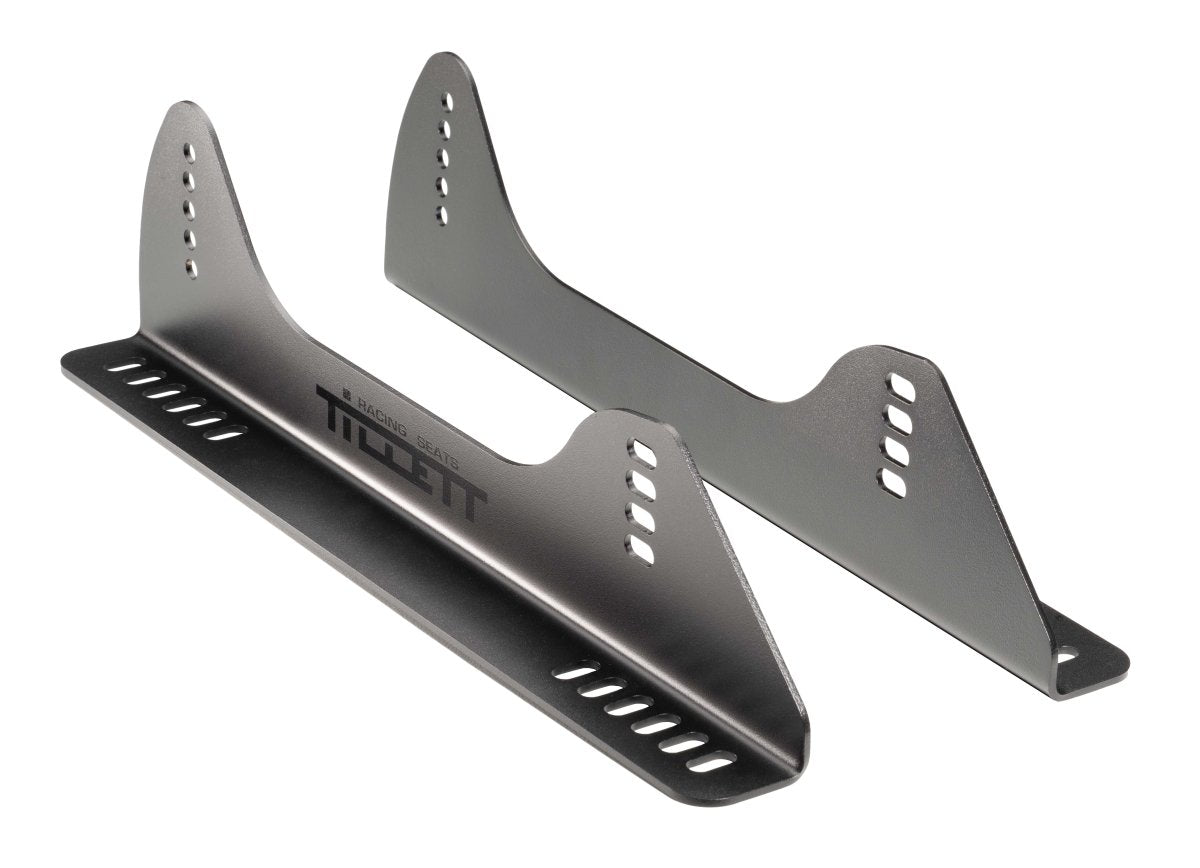

Tillett VTBO Bracket Set

The VTBO bracket system is designed to point away from the seat and will therefore give a larger footprint.

This requires a wider cockpit but helps with allowing more accessible fitting if you have the space. They are made from 3mm thick black powder coated steel and allow the seat to be tipped, raised and lowered using the various hole and slot combinations. The lower slots in the base of the bracket enable them to fit directly on the Tillett STRO and PTRO seat adjustment runners.

The optional aluminium “Pegged spacer kit” can also be used in these brackets to strengthen the front slots in the event of an accident.

‍

KEY FEATURES

• OUTWARD pointing bracket set for a wider footprint & easier installation in a cockpit.
• Flat floor bracket with 2° angle on sides to match Tillett seats B6S, B6SXL, B6*, B6 XL*, B7, B7XL, B8, B9, B10, B10XL, C1 & C1XL car seats (* side mount version only).
• Made from 3mm thick steel with textured black powder coated finish.
• The slot and hole options in the brackets allow the seat to be tipped, raised and lowered.
• Lower slot dimension enables them to fit directly on the Tillett STRO and PTRO seat adjustment runners. (Please note we advise against using any seat adjustment runners in a race car, as they are only intended for road use).
• The optional aluminium “Pegged spacer kit” can be used to strengthen the front slots in the event of an accident.
• A pair of VTBO weighs 1.8kg.
• Manufactured in the UK.

‍
